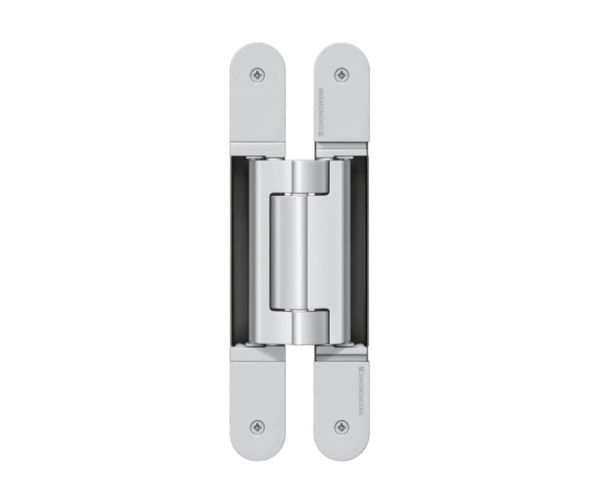

CONCEALED HINGE 640-3D

Product features completely concealed hinge system for timber, steel or aluminium frames for unrebated high performance heavy-duty doors sideways closed hinge body for an aesthetically pleasing mortise appearance comfortable 3D adjustment (side /- 3,0 mm, height /- 3,0 mm, compression /- 1,0 mm) maintenance-free slide bearings   Technical Specifications Load Capacity: 200.0 kg Overall Length: 240.0 mm Width (Door Part): 32.0 mm Width (Frame Part): 32.0 mm Cutter Diameter: 24.0 mm Collar Ring Diameter: 30.0 mm Opening Angle: 180°
