ECLIPSE 3.2 CONCEALED HINGE

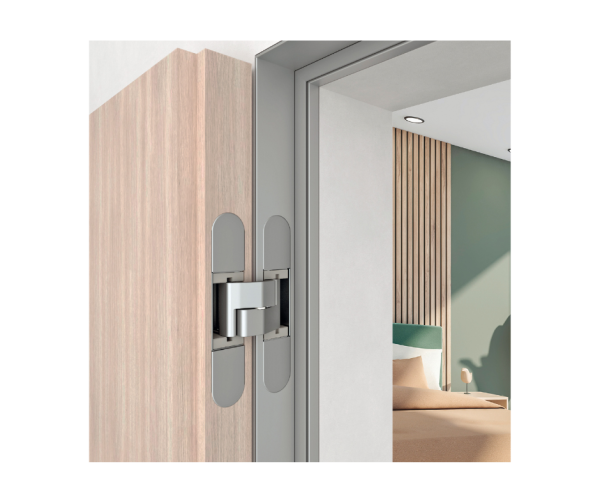

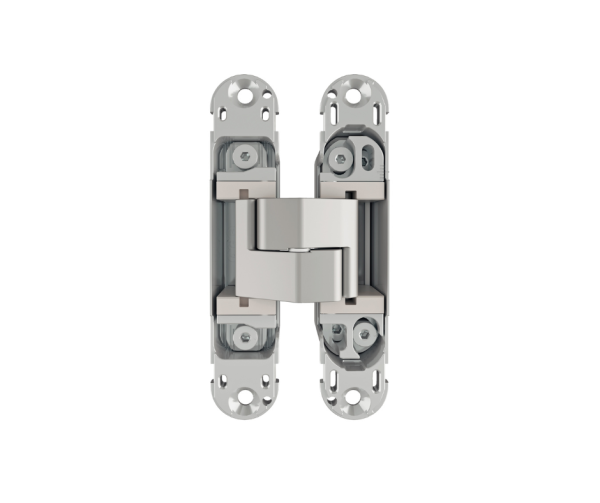

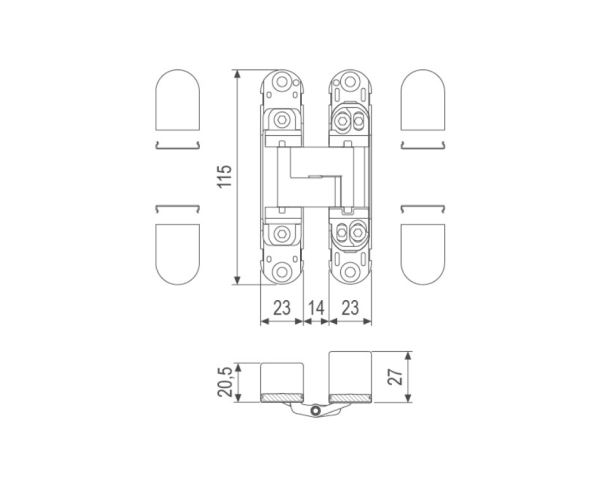

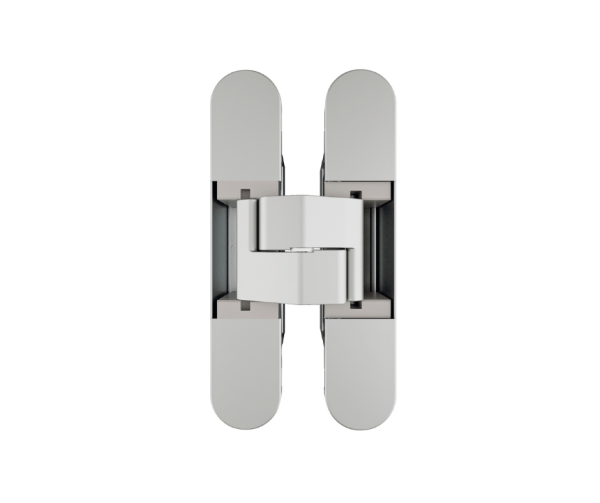

Concealed hinge for flush door with or without rebate and for aluminium doors, thanks to the 4 mm fastening thickness of hinge. Flush covers in aluminium hide the adjustment screws and keep the door beauty even when the sash is open. Adjustments in pressure ±1 mm vertical ±2 mm horizontal ±1,5 mm Height 115 mm Max. extension 14 mm Material  zamak Capacity 40 kg x 2 hinges 60 kg x 3 hinges Type for wood for aluminium
